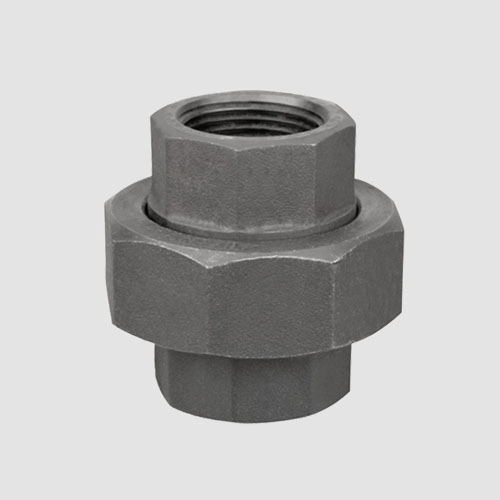

A105 THD UNION
Size | 1/8" (DN6) to 4" (DN100) |
Class | 3000 lb 、6000 lb |
Manufacturing Standards | MSS-SP-83 accept non-standard custom processing according to drawings |
Material | ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L |
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, 20#, Q235, 16Mn | |
ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91 |
Details
THD UNION
公称通径 | 近似重量 kg | 近似体积 m3 | |
DN | NPS | ||
32 | 1-1/4 | 1.35 | 0.375*10-3 |
40 | 1-1/2 | 1.92 | 0.520*10-3 |
50 | 2 | 2.85 | 0.740*10-3 |
65 | 2-1/2 | 4.90 | 1.17*10-3 |
80 | 3 | 7.10 | 1.53*10-3 |
