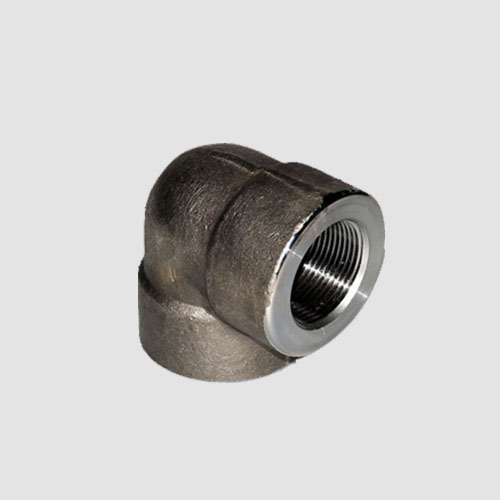

A105 螺纹90°弯头
尺寸 | 1/8" (DN6) to 4" (DN100) |
压力等级 | 2000 lb、3000 lb 、6000 lb |
制造标准 | GB/T14383 、ASME B16.11接受非标定制按图纸加工 |
材质 | ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L |
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, 20#, Q235, 16Mn | |
ASTM / ASME A 182, ASTM / ASME F5, F9, F11,F22, F 91 |
螺纹90°弯头 THD 90°ELBOW
公称通径 | 近似重量 kg | 近似体积 m3 | |||||
DN | NPS | SCH80/2000 | SCH160/3000 | XXS/6000 | SCH80/2000 | SCH160/3000 | XXS/6000 |
6 | 1/8 | 0.08 | 0.10 | 0.18 | 0.020*10-3 | 0.029*10-3 | - |
8 | 1/4 | 0.08 | 0.15 | 0.30 | 0.028*10-3 | 0.045*10-3 | - |
10 | 3/8 | 0.13 | 0.30 | 0.45 | 0.045*10-3 | 0.070*10-3 | - |
15 | 1/2 | 0.22 | 0.45 | 0.72 | 0.070*10-3 | 0.130*10-3 | 0.190*10-3 |
20 | 3/4 | 0.32 | 0.70 | 1.20 | 0.130*10-3 | 0.195*10-3 | 0.320*10-3 |
25 | 1 | 0.50 | 1.21 | 1.65 | 0.190*10-3 | 0.330*10-3 | 0.410*10-3 |
32 | 1-1/4 | 0.80 | 1.47 | 2.70 | 0.330*10-3 | 0.405*10-3 | 0.760*10-3 |
40 | 1-1/2 | 0.93 | 2.60 | 3.30 | 0.410*10-3 | 0.760*10-3 | 1.140*10-3 |
50 | 2 | 1.60 | 3.05 | 6.05 | 0.770*10-3 | 1.135*10-3 | 1.760*10-3 |
65 | 2-1/2 | 2.95 | 5.80 | 9.88 | 1.140*10-3 | 1.760*10-3 | - |
80 | 3 | 5.60 | 8.85 | 16.40 | 2.350*10-3 | 2.600*10-3 | - |
100 | 4 | 10.5 | 13.5 | 23.5 | 3.850*10-3 | - | - |
